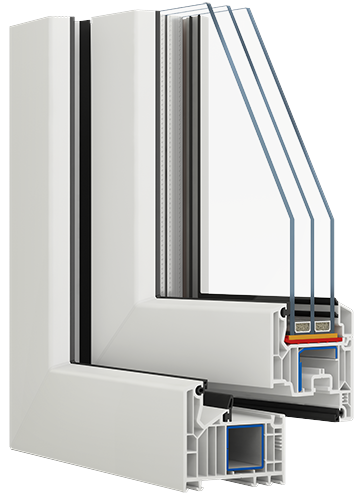

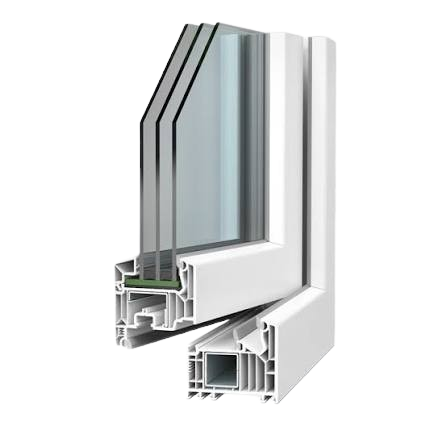

VEKA 82mm MD
Our highest-performing PVC system
- 82mm system depth
- 7 chambers
- Class A profile
- 1.0 W/m²K Uf value
- Uw up to 0.74 W/m²K
- 3-seal gasket system

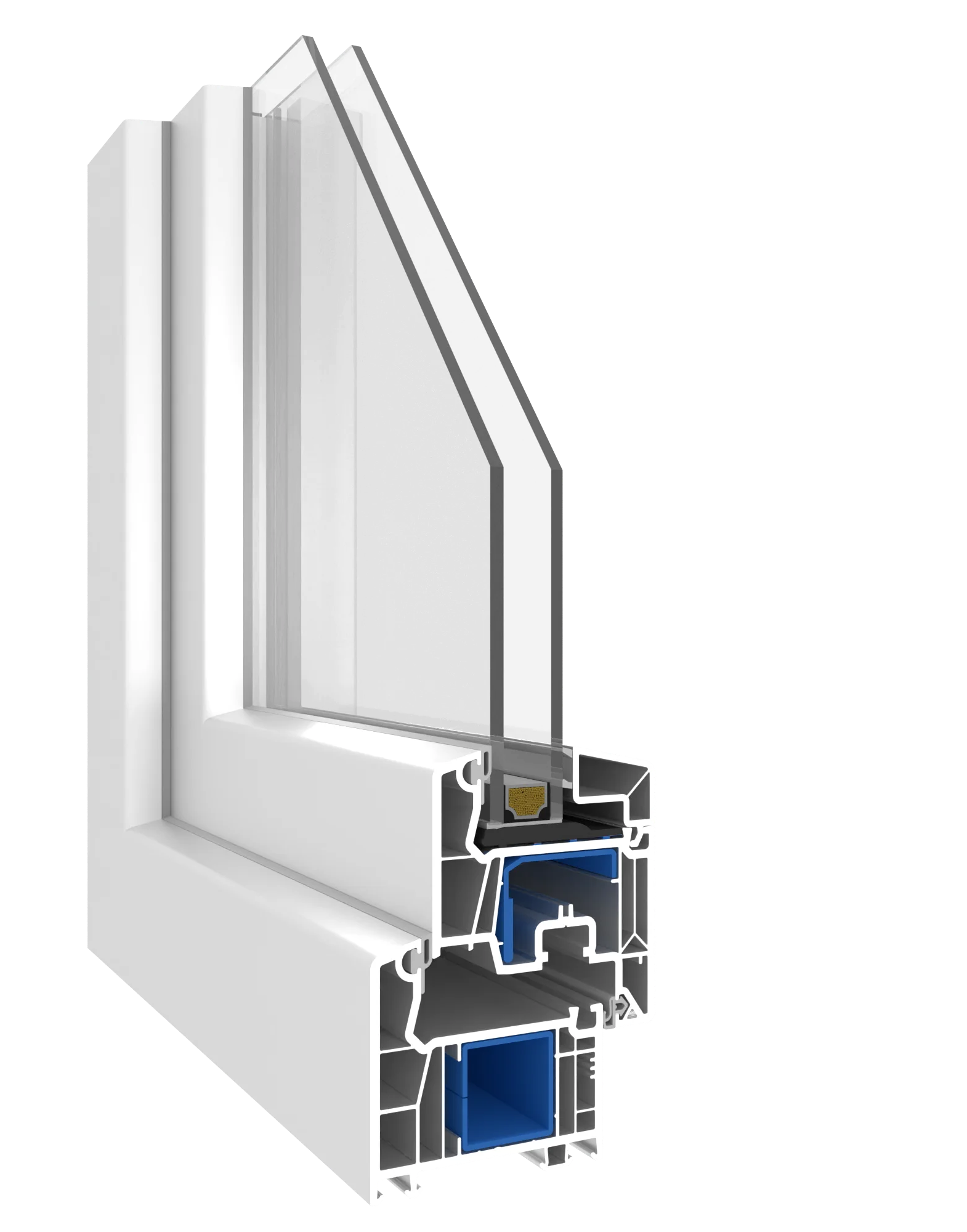

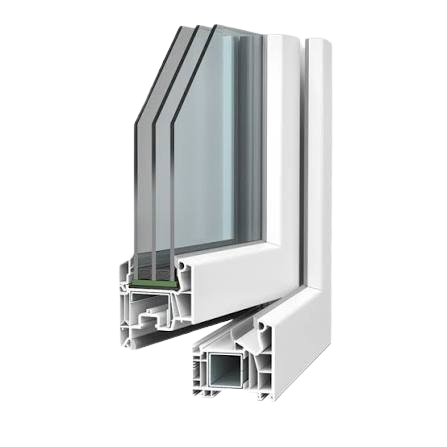

VEKA 76mm MD
Center-seal PVC system with Class A profile walls
- 76mm system depth
- 5 chambers
- Class A profile
- 3mm outer walls
- Uw up to 0.76 W/m²K
- Sound insulation Class 5

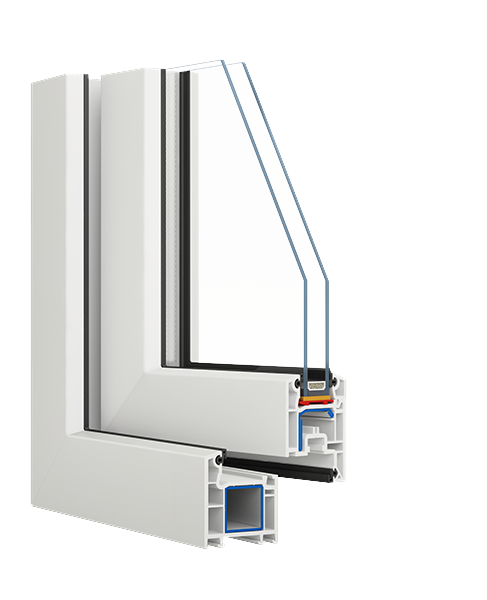

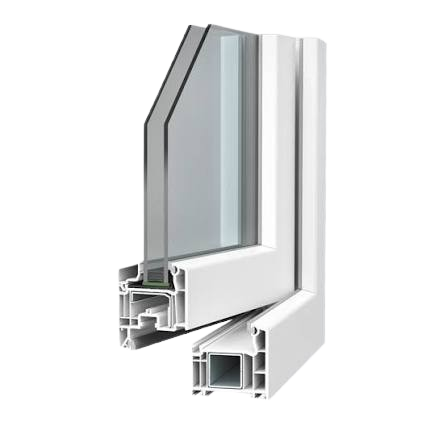

VEKA 70mm AD
Classic 2-level gasket system for cost-efficient renovations
- 70mm system depth
- 5 chambers
- Narrow 118mm sightline
- Uw up to 0.76 W/m²K
- Glazing 21–35mm

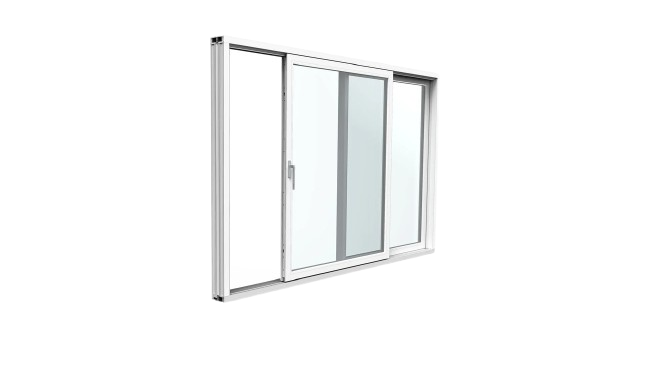

VEKAMOTION
Lift-and-slide door with integrated ventilation
- 82mm profile depth
- Openings up to 6m wide
- Integrated ventilation slots for constant fresh air

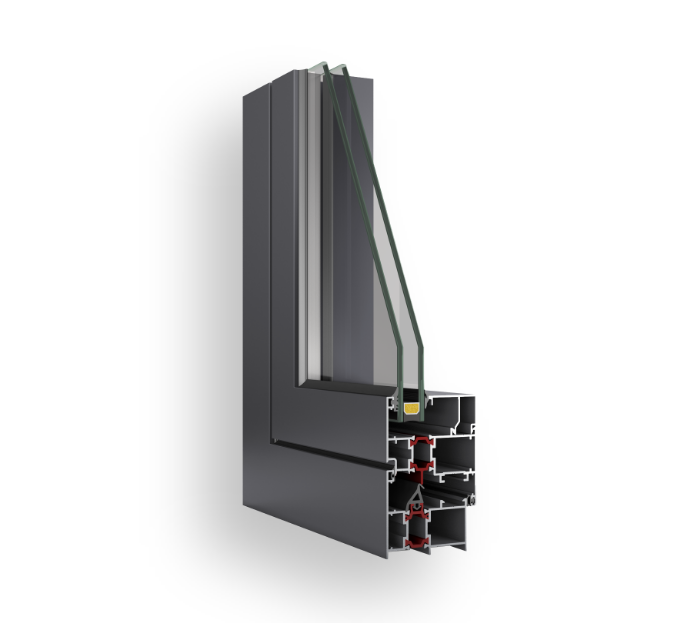

Eco 62 Termo
Flat, modern-profile thermal aluminum system
- 62mm system depth
- EPDM gasket sealing
- Flat, minimal-sightline design for clean facades

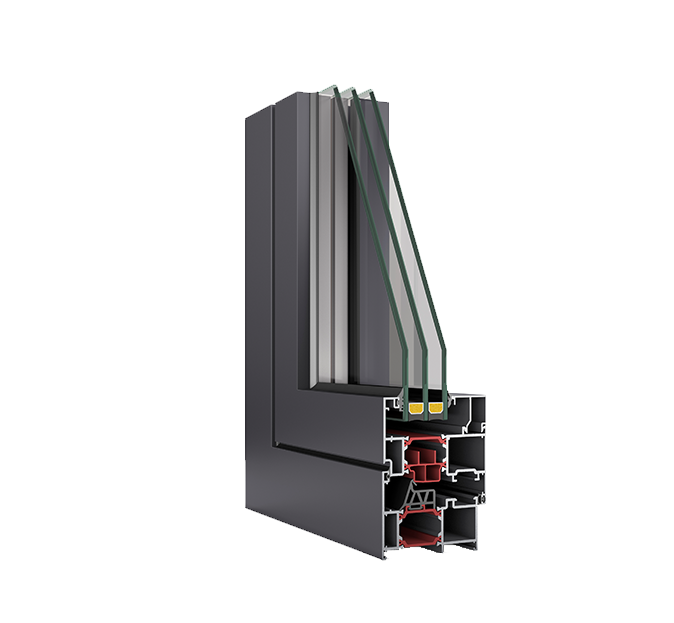

TH 78
Heavy-duty thermal break system for high-traffic entrances
- 78mm system depth
- ~34mm polyamide thermal break
- Reinforced for large door & window openings

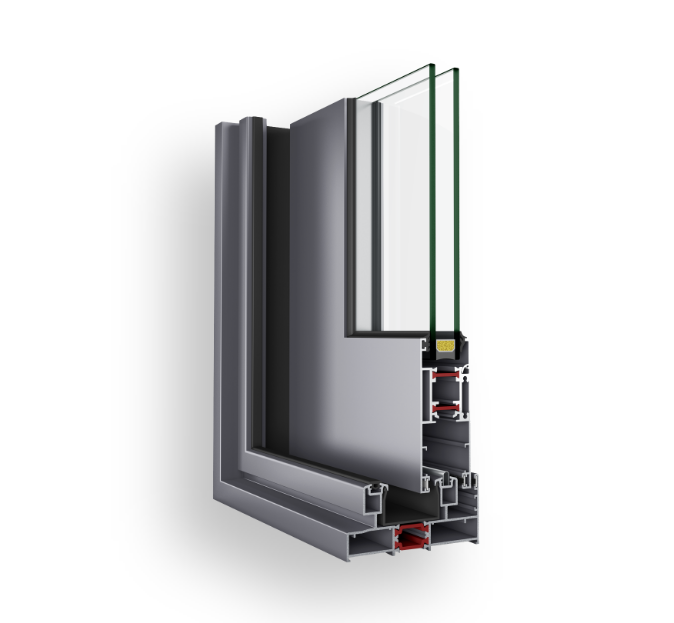

SL 38
Slim-profile sliding system for maximum glass area
- Ultra-slim sightlines
- Thermal-break variant available
- Smooth multi-track sliding operation

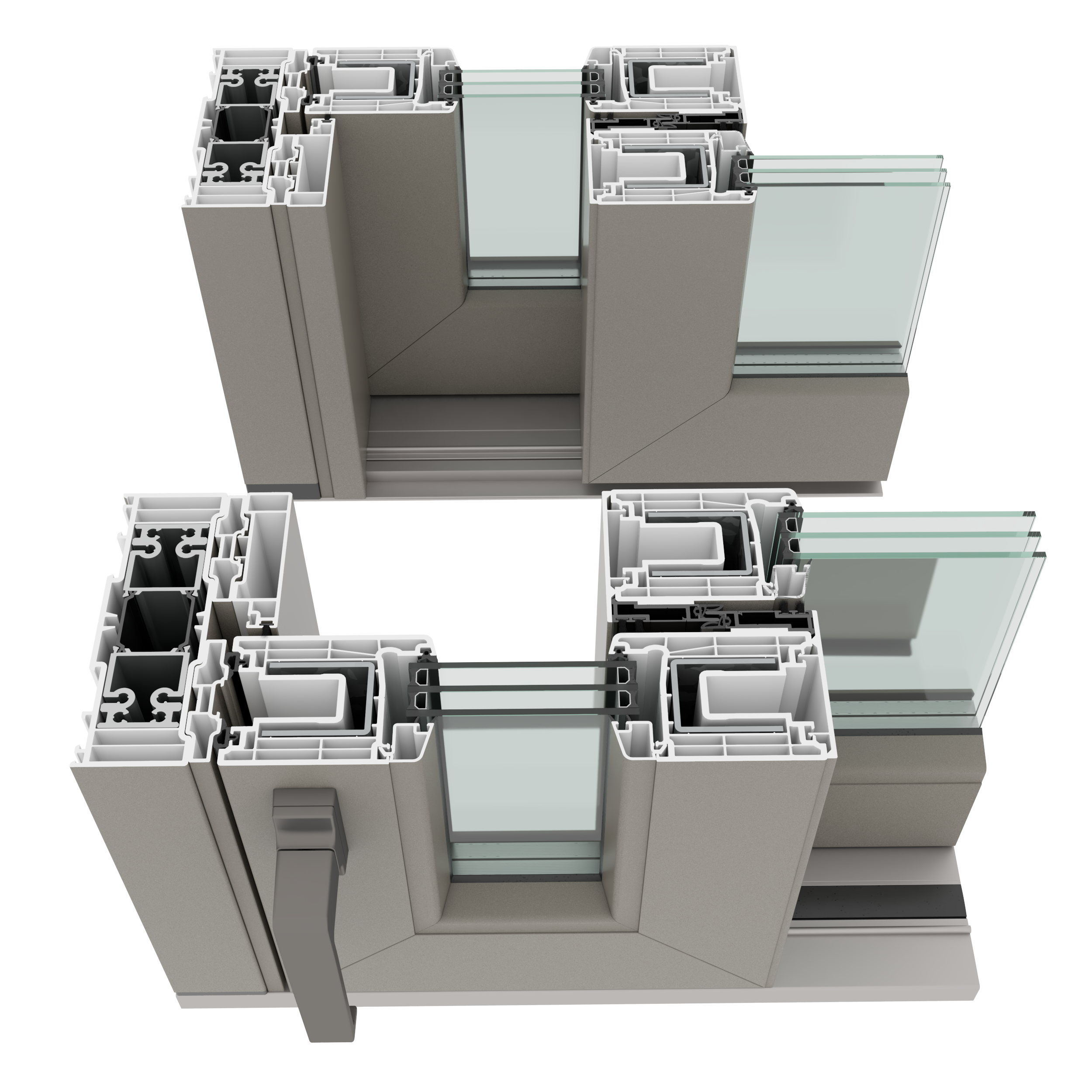

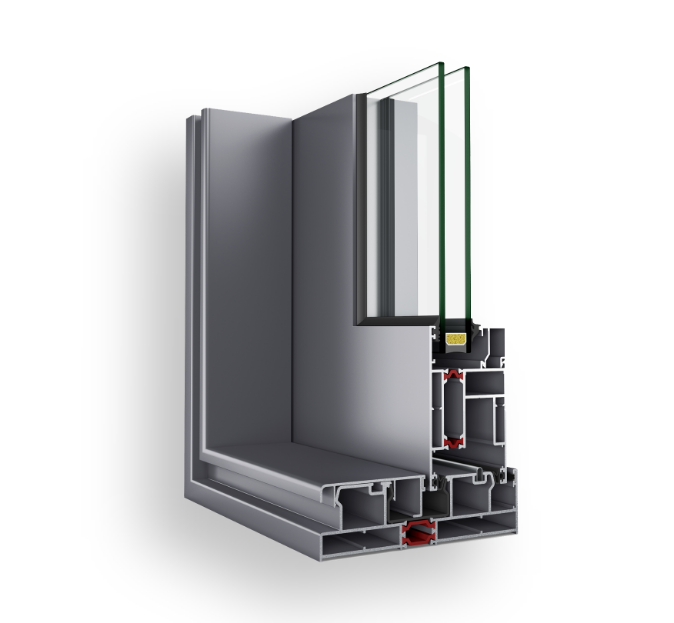

LS 60
Insulated lift-and-slide system for large openings
- 24mm polyamide thermal bridge
- Sash load up to 300kg
- 2-rail & 3-rail frame configurations

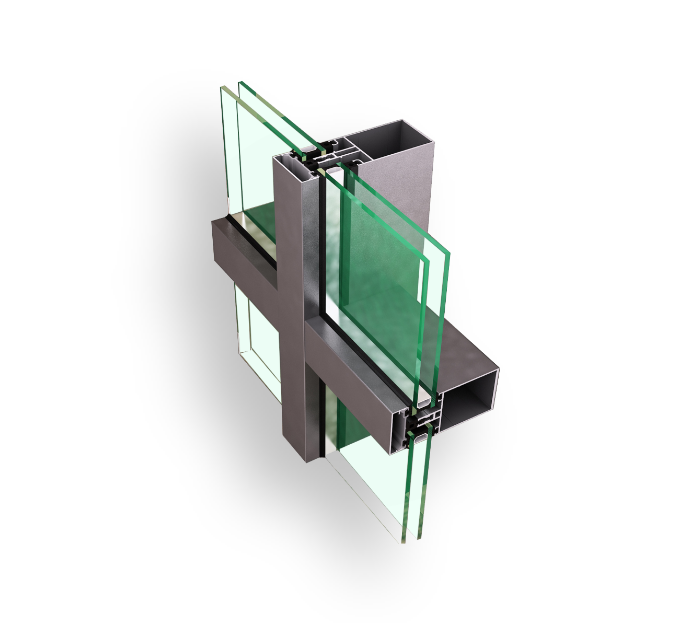

Aluminum Facade Systems
Structural curtain-wall facade system
- Vertical profiles: 30–166mm
- Horizontal profiles: 36–156mm
- 1.3 W/m²K Uf value
- Sound insulation up to 45db

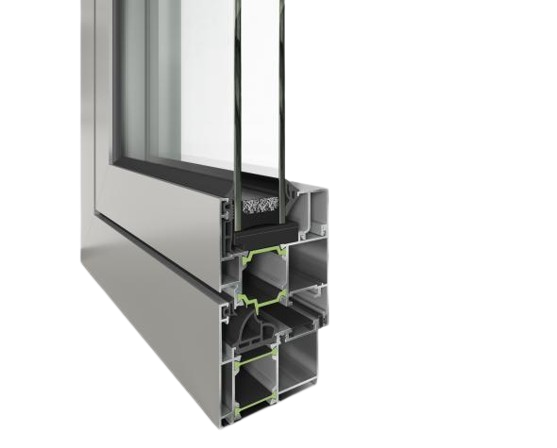

ETEM E45
Thermal break opening window & door system
- 60mm frame depth
- Uw up to 1.2 W/m²K
- Sash weight up to 140kg
- Sound insulation up to 42dB

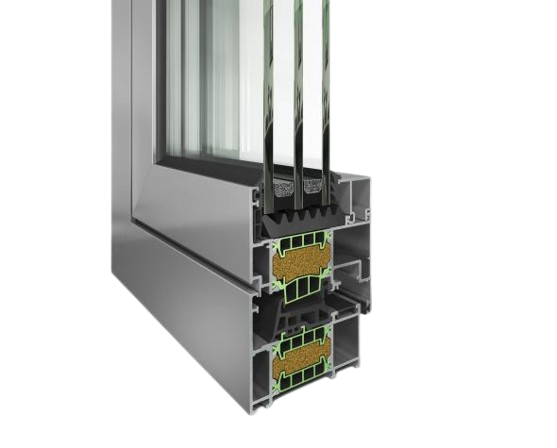

ETEM E75
Heavy-duty thermal break window & door system
- 75mm frame depth
- Uf from 1.1 W/m²K
- Sound insulation up to 46dB
- Burglar resistance up to RC2

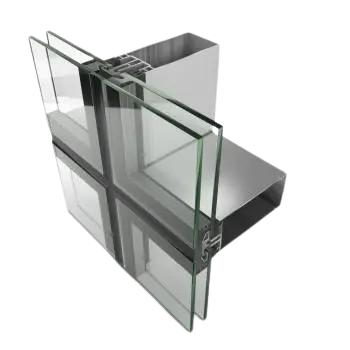

ETEM EF50
50mm stick & structurally-glazed curtain wall system
- 50mm system width
- Depth 64–249mm
- Uf from 1.3 W/m²K
- Max weight 500kg per panel
Interno Office System
Minimalist glass office partition system
- 42mm system case depth
- 8–10mm glass thickness
- Single or double safety laminated glass

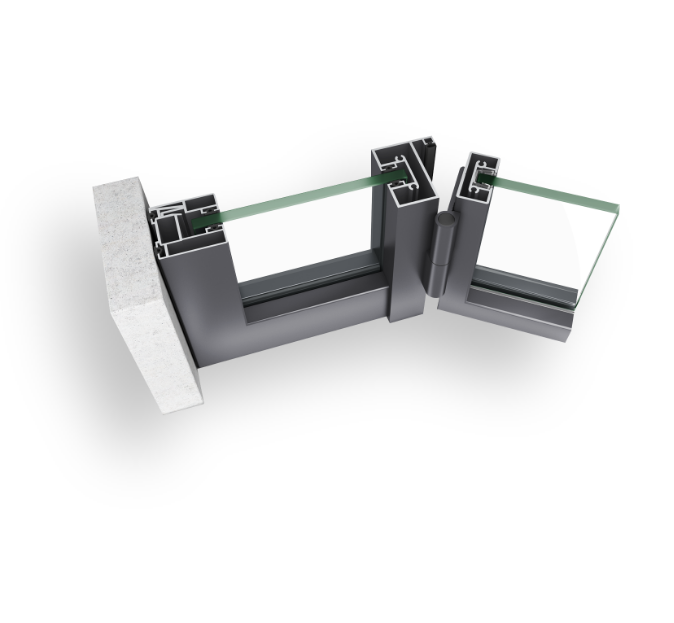

Folding Door System
Aluminum bi-fold door for wide openings
- Thermal-break construction
- Multi-point locking
- Panels stack compactly to one side

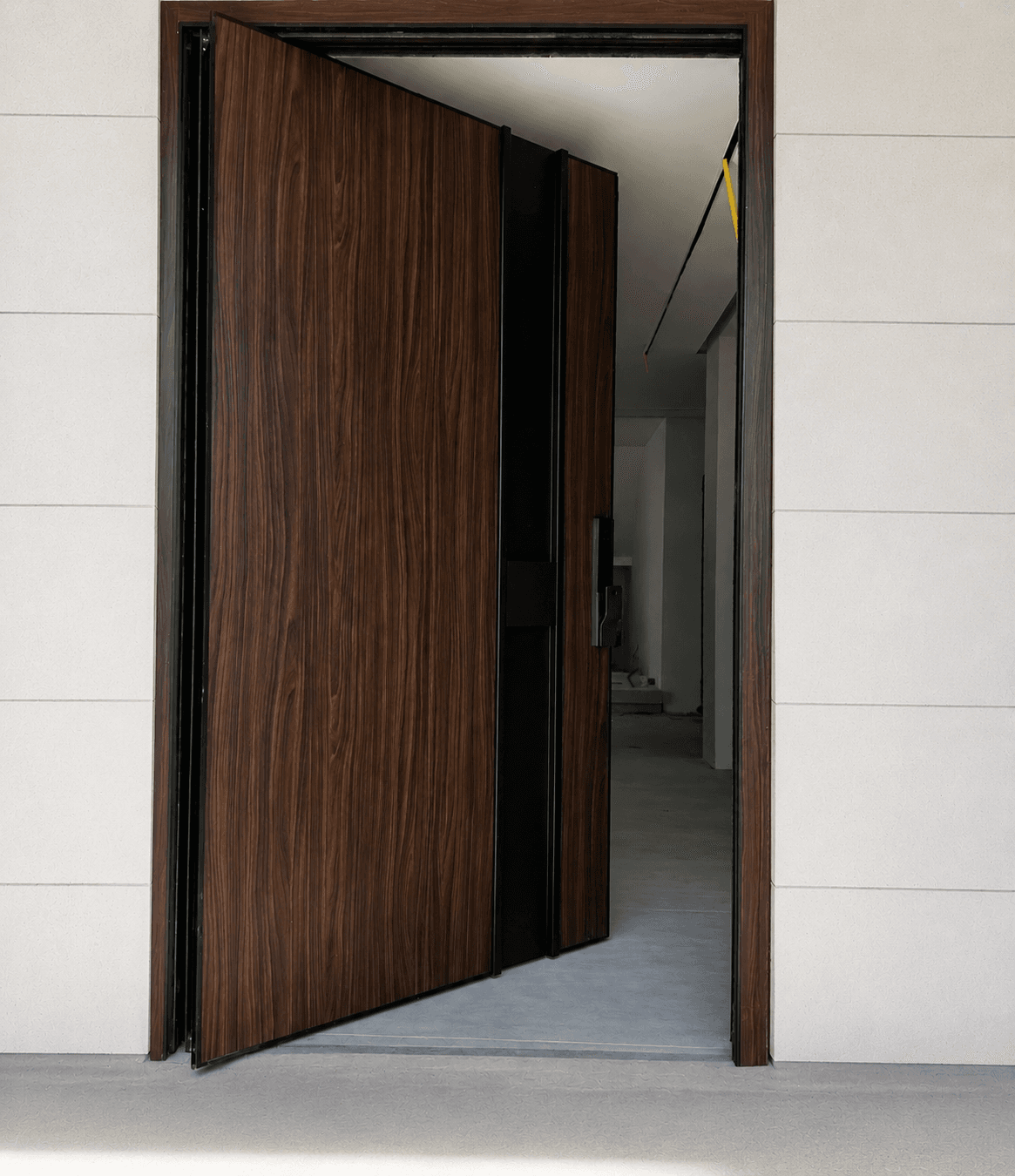

Pivot Door
Oversized entrance door with Fundermax HPL cladding
- Concealed pivot, up to 500kg
- Thermally broken frame
- Fundermax exterior-grade HPL facing

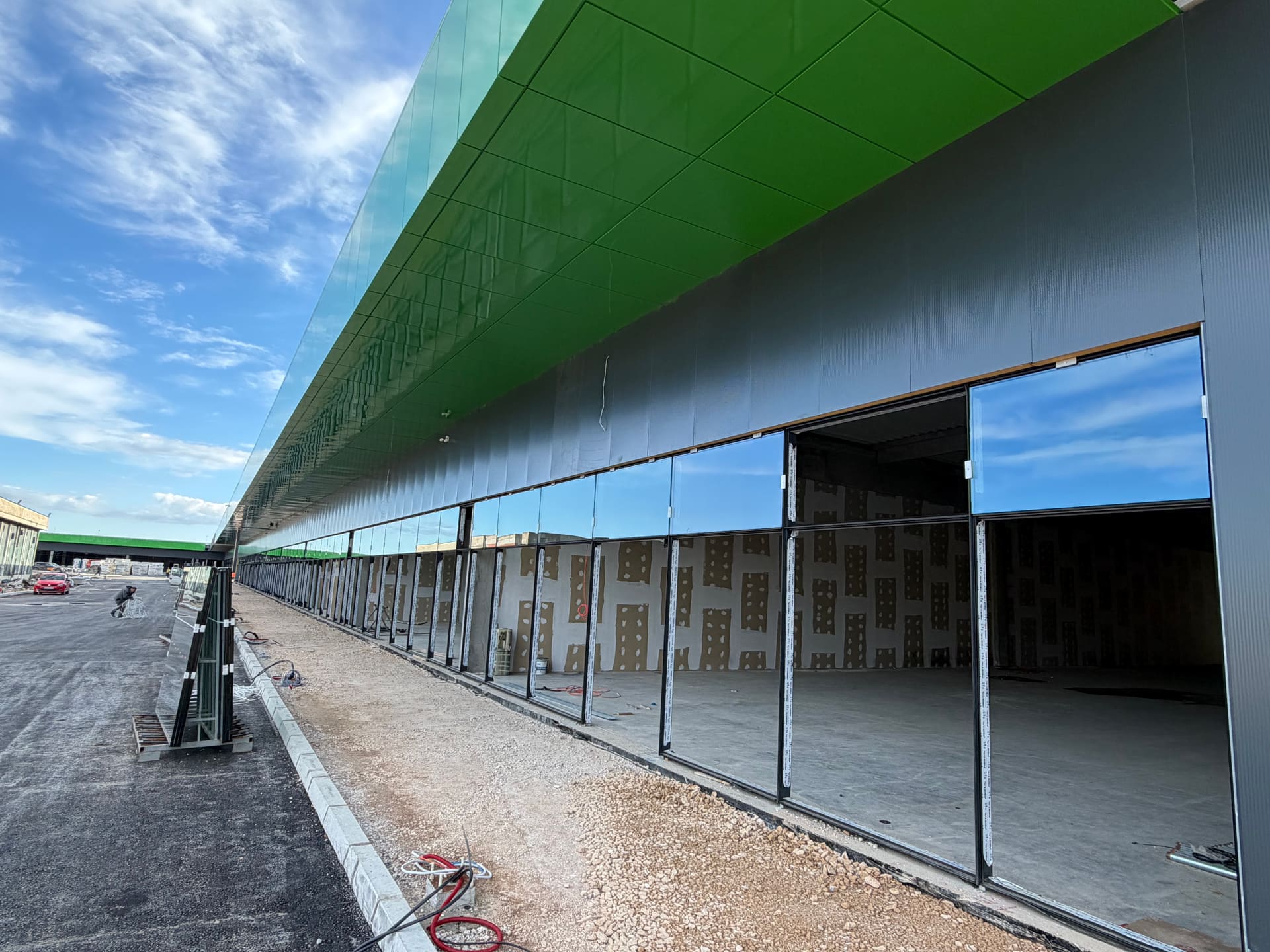

Alubond
Aluminum composite panel cladding for modern facades
- Thickness 3 / 4 / 6mm
- 0.020in aluminum skins
- Polyethylene core, ventilated facade & canopy use
MACO Accessories
Multi-Matic tilt & turn hardware
- Max sash 1630 × 2250mm
- Up to 130kg sash weight
- Stainless / galvanized steel construction
- 10-year functional warranty, with an optional upgrade to burglar-resistant striker plates
